Roundness and Surface Finish Requirements of Glass Barrels for Pre-filled Syringes
In recent years, pre-filled syringes (PFS) have become a popular choice for drug delivery systems due to their convenience, precise dosing, reduced contamination risks, and enhanced patient compliance. A critical component of pre-filled syringes is the glass barrel, which must meet stringent standards in terms of roundness and surface finish (smoothness) to ensure product performance and patient safety.
This article explores the importance of roundness and surface finish in glass barrels, the factors influencing these parameters, and the methods used for evaluation.
1. Importance of Roundness in Glass Barrels
Roundness refers to the degree to which the inner surface of the glass barrel maintains a consistent circular shape along its entire length. Inaccurate or uneven roundness can lead to:
Plunger sticking or leakage: An uneven inner circumference may interfere with the smooth movement of the rubber plunger, leading to leakage or jerky movement.
Inaccurate dosing: Variations in roundness affect the internal volume, leading to inconsistent drug delivery.
Integrity issues during assembly: Poor roundness can result in misalignment between the plunger, stopper, and needle assembly, compromising device functionality.
International standards such as ISO 11040 and USP guidelines specify acceptable tolerance levels for barrel roundness, typically in the range of ±0.03 mm depending on the syringe size.
2. Importance of Surface Finish (Smoothness)
The surface finish or inner surface roughness of the glass barrel is another crucial quality parameter. A high-quality finish offers several benefits:
Reduced particle shedding: A smooth inner wall minimizes friction and avoids generation of glass particles during plunger movement.
Improved gliding performance: Lower surface roughness ensures smoother motion of the rubber stopper, especially in siliconized syringes.
Better drug stability: Some biologic drugs can adsorb onto rough surfaces or degrade due to micro-abrasions on the glass.
Reduced risk of contamination: Surface defects can harbor impurities or lead to the accumulation of silicon oil droplets.

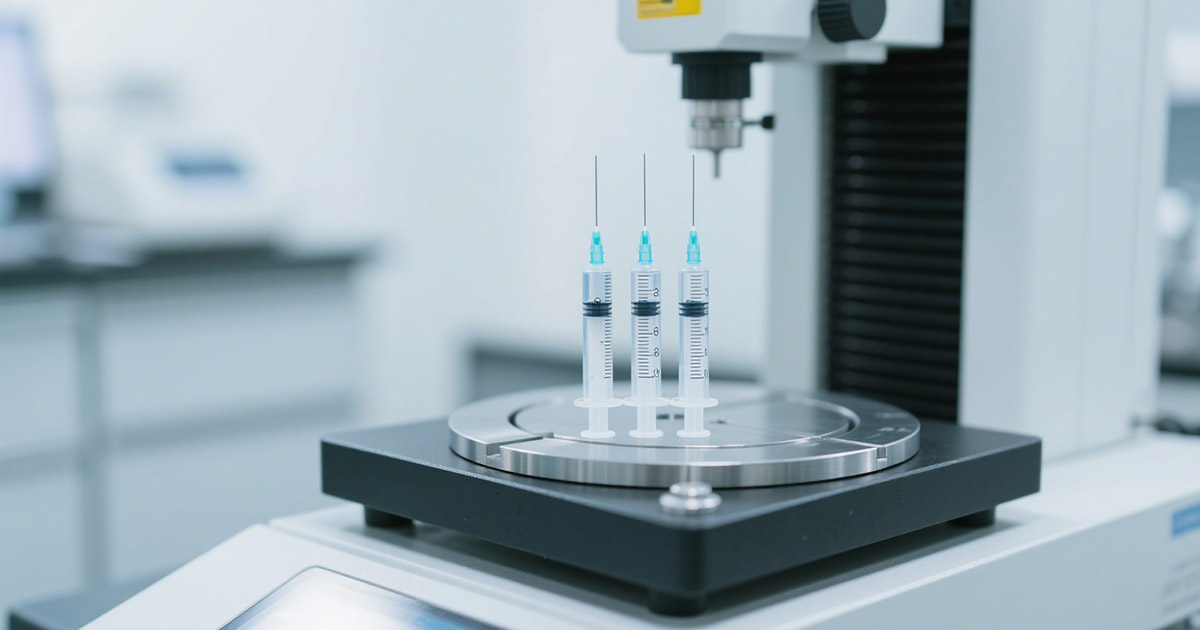

Glass barrel smoothness is typically quantified using parameters such as Ra (average roughness), measured by optical or tactile profilometers. For medical-grade pre-filled syringes, Ra values should generally be less than 0.4 μm.
3. Manufacturing and Control Measures
To achieve optimal roundness and surface finish, manufacturers adopt a range of advanced techniques:
Precision forming processes: Tubing is heated and formed using high-precision molds and rotating systems to ensure symmetrical shaping.
Annealing treatment: Stress-relieving heat treatment reduces internal defects and deformation.
Laser or camera-based inline inspection: Automated systems monitor dimensional parameters in real-time.
Post-processing steps: Acid washing, flame polishing, and silicone oil coating help improve finish and performance.
Strict process validation and quality control ensure each syringe barrel meets regulatory and performance requirements.
4. Conclusion
In pre-filled syringes, the glass barrel’s roundness and surface finish are essential indicators of product quality, performance, and safety. Adhering to stringent dimensional and surface requirements ensures smooth drug delivery, minimizes manufacturing issues, and enhances end-user satisfaction. As injectable therapies grow in demand—especially for biologics and vaccines—the importance of precision glass barrel production will only continue to increase.
